OPTICAL PLATEAUS AND KNIFE-EDGES: WHAT 8 MILLION VIRTUAL GEM CUTS REVEAL ABOUT CUT FORGIVENESS
A quick note: I’m not a trained gemologist. No GIA diploma, no mineralogy degree, and no traditional bench apprenticeship. Just a software engineer who fell down the rabbit hole of faceting machines, geometry, and how light bounces around inside crystals.
On a computer screen, every faceting diagram is cut with 0.00° perfection. Every pavilion main hits its target angle to six decimal places, every index tooth aligns without backlash, and dop wax never flexes under polishing heat.
At a real bench, human hands and real machines live in a world of fractional-degree drift. Mast columns flex slightly under pressure, cheater dials creep, transfer jigs introduce tiny tilt offsets, and closing a stubborn meetpoint sometimes nudges a tier by 0.2° or 0.5°. That raises an obvious practical question: when real-world angles drift slightly off the blueprint, does your gemstone stay bright, or does its optical performance fall off a cliff?
To replace guesswork with real numbers, we stress-tested all 83,328 optimized gemstone designs in the OffTheDop inventory. For every single diagram, our GPU simulator cut 100 virtual gemstones (over eight million simulated cuts in total), applying random per-tier mast angle jitter up to ±1.0° while re-evaluating full 3D multi-tilt brightness, contrast, fire, and zero-bounce True Windowing on every stone.
Rather than reporting a flattering average, we grade Cut Forgiveness by each design's tenth-percentile retention (p10): the optical score floor (relative to the ideal CAD baseline) that nine out of ten real-world bench cuts will equal or beat.
Why We Model Per-tier Error (and Why It Matters)
A critical detail of our simulator is that angular errors are drawn once per tier, not independently per individual facet.
On a real faceting machine, you do not re-dial the mast protractor eighty separate times for an eighty-facet stone. You lock the mast angle once for an entire tier (say 41.0° for the pavilion mains), set your hard stop, and click the index gear around all eight or sixteen symmetry positions without touching the angle knob (90° girdle cuts remain unjittered against their horizontal stop). Any protractor calibration offset, digital encoder zero drift, mast flex under load, or deliberate nudge to close a stubborn meetpoint therefore shifts every facet in that tier identically, while the next tier (P2, C1, C2, C3) gets its own fresh mast setting.
Modeling error per tier rather than per facet has three major physical consequences:
- Rotational symmetry is preserved within every tier: Because all facets in a tier share the exact same mast angle and depth stop, an eight-fold round or five-fold pentagon stays strictly rotationally symmetric in every simulated cut. Entire rings of facets tilt in lockstep relative to neighboring tiers rather than going lopsided on one corner.
- Per-tier drift is far harsher (more conservative) than random per-facet noise: If errors were independent on each individual facet, positive and negative nudges around an eight-facet ring would largely average each other out (in our diamond control sweep, independent ±1.0° per-facet noise cut score variance in half compared with per-tier drift). Under per-tier error there is zero statistical averaging within a tier: if
P1drifts +0.8°, all facets ofP1move +0.8° together, allowing one crowded tier to undercut or swallow an entire neighboring ring around the full circumference of the stone at once. - It separates diagram geometry from asymmetric bench alignment: Per-tier simulation tests the intrinsic optical sturdiness of a diagram's tier angles. Asymmetric single-facet errors (such as dop-transfer tilt, index-wheel eccentricity, or uneven cheater pressure on one facet) act on top of tier settings and break symmetry locally on one side of a stone.
What 8.33 Million Virtual Cuts Reveal
First, the encouraging news for anyone sitting behind a mast machine: well-optimized 3D geometry is far sturdier than perfectionist folklore suggests. Across all 83,328 catalog designs, the median tenth-percentile retention under ±1.0° per-tier jitter is 98.07%. More than half of the entire inventory (53.4%) earns our Excellent rating (at least 98% retention), 98.0% retain at least 95% of their baseline score, and fewer than one in nine hundred fragile outliers drop below 90%.
Slicing those eight million virtual cuts by refractive index and facet complexity, however, uncovered two surprises that run straight against conventional bench wisdom:
- The High-RI Contrast Paradox: It is easy to assume that higher refractive index automatically makes a diagram more forgiving because its critical angle is smaller (24.4° in Diamond and 22.0° in Moissanite, versus 35.6° in Spinel and 34.6° in Sapphire). In the catalog data, the share of Excellent designs climbs from Quartz (53.0%) to a peak in Spinel (59.8%) and Sapphire (59.0%), then dips in Diamond (44.4%) and Moissanite (22.5%). Why? Once refractive index passes 2.15, rays almost never leak out the pavilion at normal angles, so top-scoring high-RI cuts compete on delicately tuned multi-bounce contrast pinwheels and oblique crown dispersion fans. Perturbing an entire tier by a full degree in moissanite rarely opens a window, yet it shifts those finely balanced contrast zones faster than it disturbs a wide, sturdy sapphire reflection bowl.
- Multi-Tier Statistical Redundancy: Designs in our Expert complexity tier achieve an 81.0% Excellent rate, compared with 39.9% among simpler Intermediate cuts. Because facets within a single tier move in lockstep and never cancel each other out, a two-tier pavilion has almost no statistical cushion: one mast offset tilts half of the stone's reflective mirror at once. Spread the pavilion across eight or ten independent tiers, and random positive and negative tier offsets partially cancel across the 3D hemisphere. (Of course, closing ten tiers still takes more patience under a 10× loupe, which is why OffTheDop pairs Cut Forgiveness with a separate Facet Complexity Index for mechanical workload.)

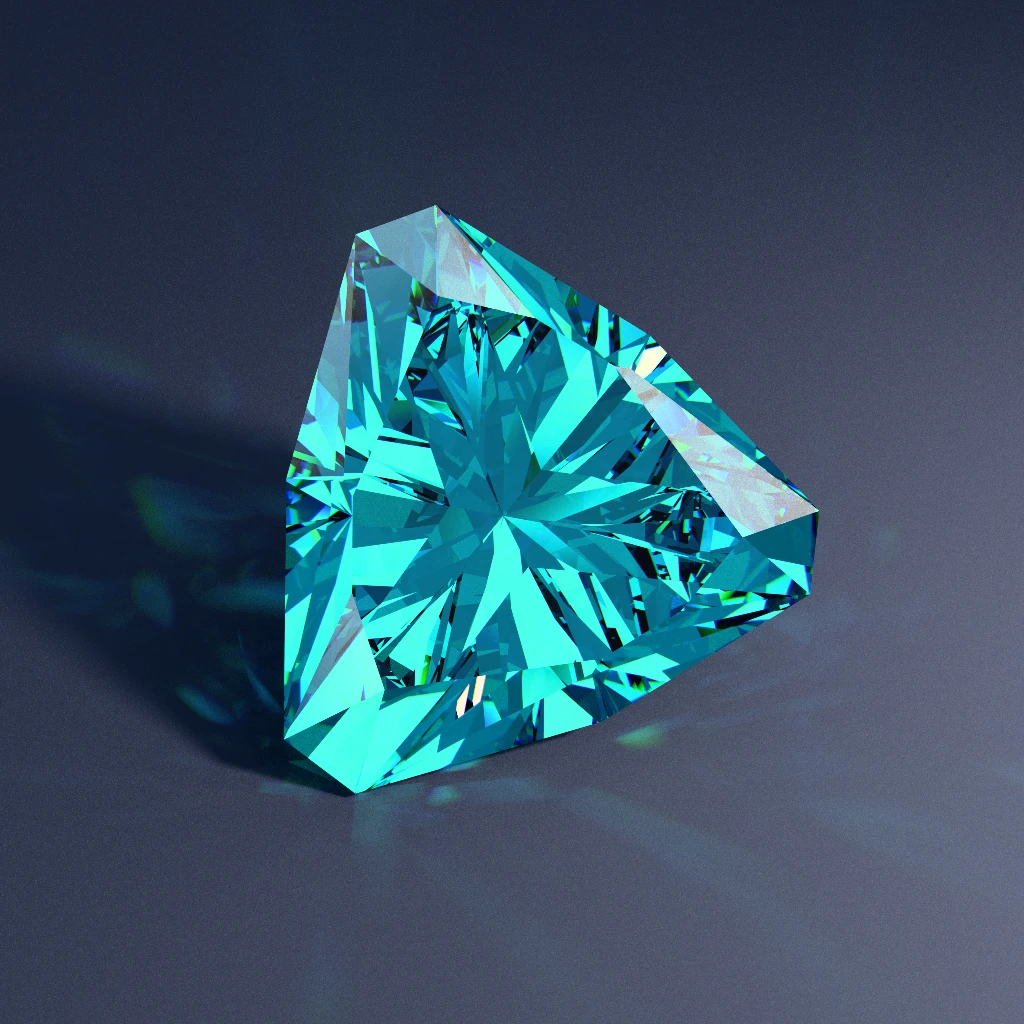

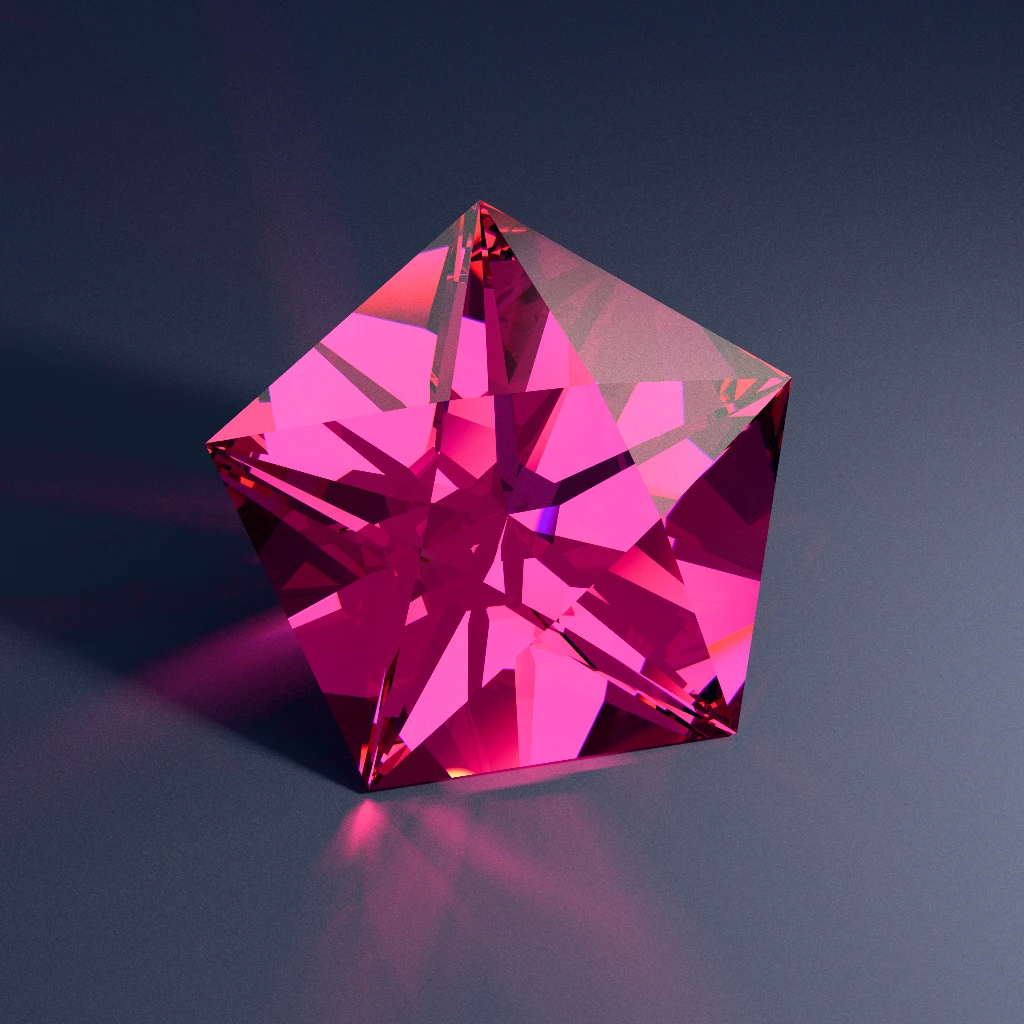

When a diagram sits atop a genuine 3D optical plateau, every ray clears the local critical angle with degrees to spare and neighboring tiers have generous angular breathing room. Here are three Extended Showcase plateau designs across Spinel, Cubic Zirconia, and Diamond where nine out of ten simulated ±1.0° bench cuts retain over 99.5% of their ideal CAD performance:
Case Study: The Hearts And Arrows Paradox
Ask any diamond cutter to name the most famously unforgiving cut in gemology and you will immediately hear Hearts & Arrows: the classic round brilliant (41.0° pavilion mains, 39.8° lower halves, 38.0° crown mains) prized for projecting eight crisp dark arrows face-up and eight symmetrical hearts from the pavilion under a structured-lighting viewer scope.

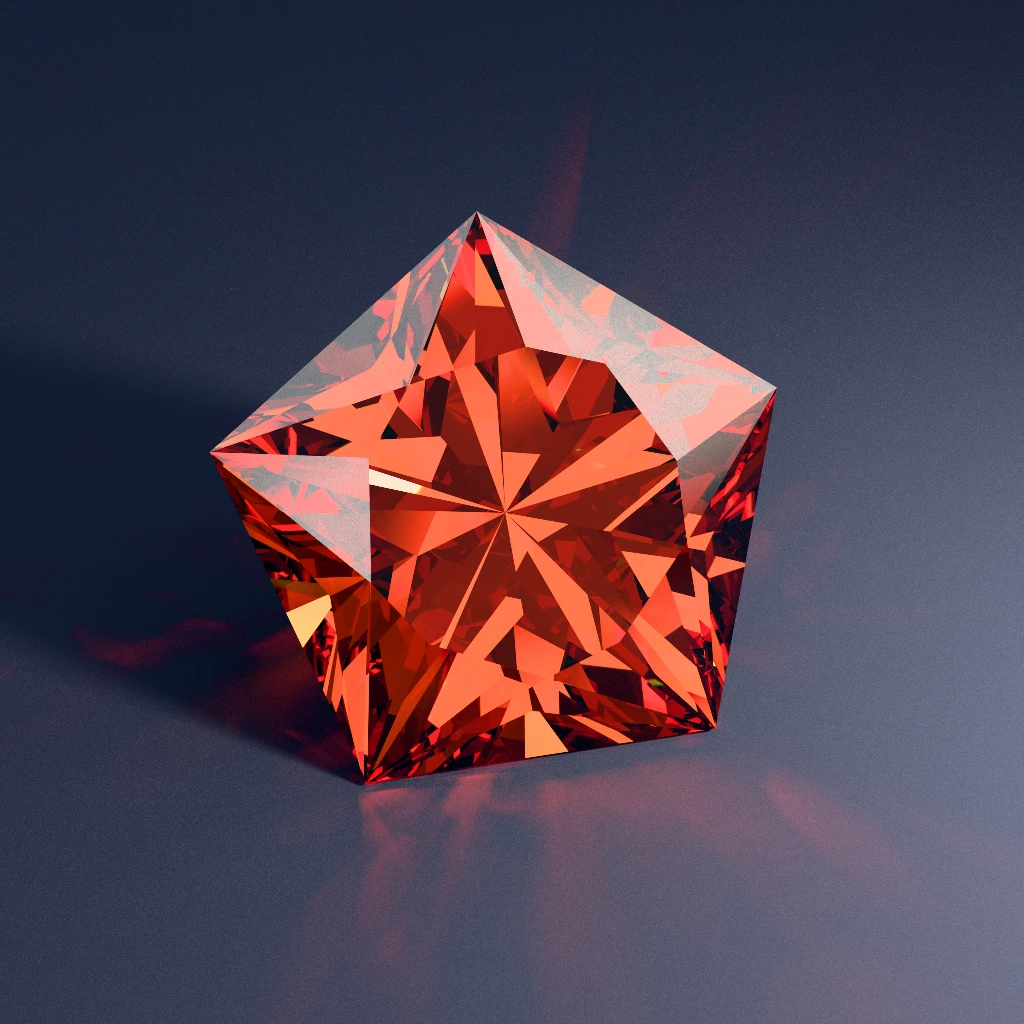

To see how Hearts & Arrows actually behaves under real-world per-tier angular error, we ran an eight-step GPU sensitivity sweep from ±0.10° all the way to ±2.00° (100 Monte Carlo per-tier cuts per step), comparing classic Hearts & Arrows directly against two Diamond designs from the live OffTheDop catalog: our five-fold plateau cut Onyx Torrent 129 and one of our rare Critical-rated round outliers, Luminous Eddy 411.
Look closely at the three curves above, because they expose two distinct phenomena:
- Why a CAD winner can become a bench knife-edge: At ideal angles in CAD, Luminous Eddy 411 actually outscores classic Hearts & Arrows. Yet under ±1.0° per-tier mast jitter its tenth-percentile retention plunges to 86.1% (and its worst trial falls to 80.0%). Inspecting its cutting specification reveals the culprit: three pavilion tiers sit crowded at 42.70°, 43.17°, and 43.94°, separated by less than half a degree to just over a degree. When per-tier drift nudges one ring past its neighbor, the facet planes swap angular order and swallow adjacent pavilion wedges around the entire circumference at once.
- Why Hearts & Arrows is simultaneously "unforgiving" and "forgiving": Under the exact same ±1.0° per-tier stress test, classic Hearts & Arrows posts an Excellent 98.0% tenth-percentile retention, and still holds 96.8% even at a brutal ±2.0°!
If Hearts & Arrows holds over 98% of its 3D optical score at ±1.0°, why do diamond factories fight over ±0.10° tolerances? Because "forgiveness" describes two completely different optical goals.

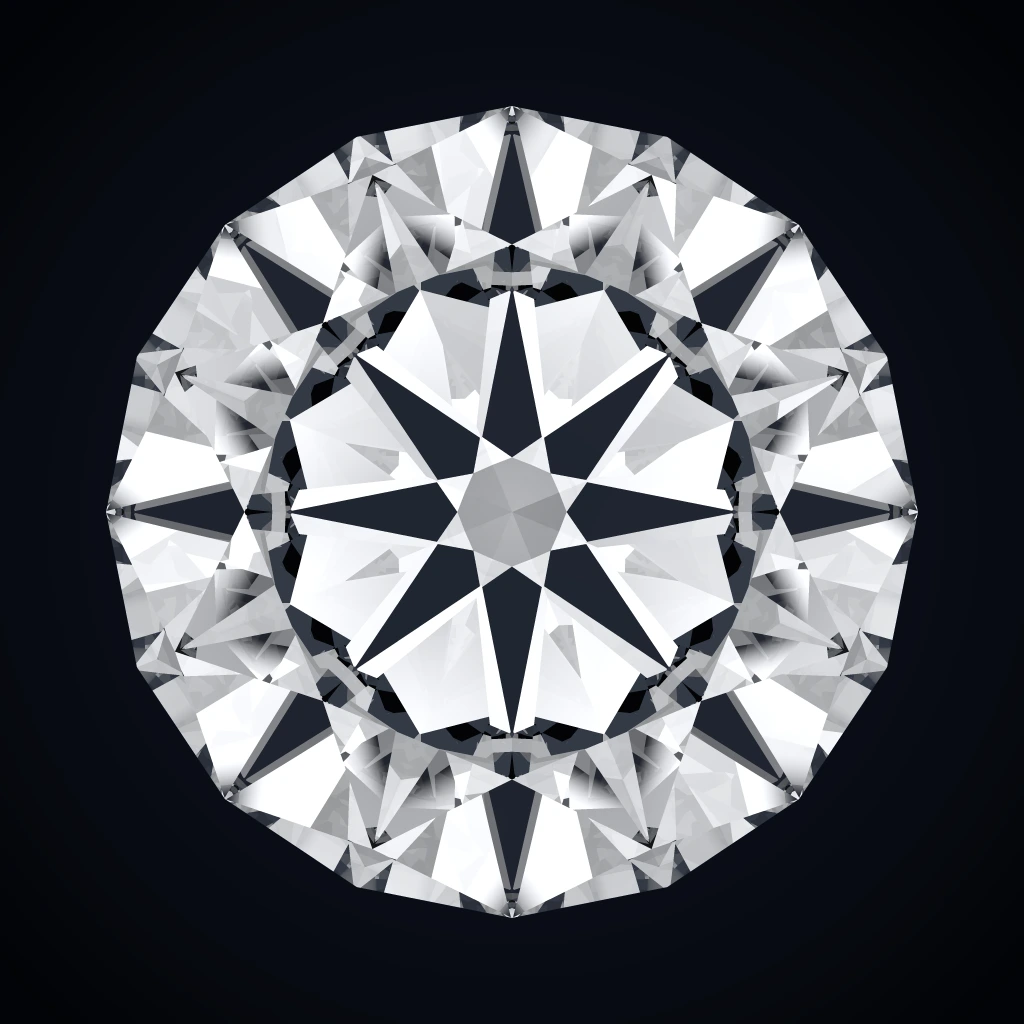

(A brief rendering confession before you look at the stones below: we originally rendered these three Hearts & Arrows panels in our full studio bidirectional path tracer and spent ten minutes squinting at the screen wondering who stole the arrows. Then physics humbled us. Those eight dark arrows are not painted inside a diamond; they are the reflection of your own big head blocking the ceiling lights directly above the table. Our physical studio path tracer uses an infinitely tiny pinhole camera, making it a headless ghost hovering in a bright room: no noggin overhead, no shadow, no arrows! Switching to ProFacet's analytical 3D Raytracer, which restores a virtual human head shadow above the crown, immediately snaps all eight obsidian arrows back into view:)

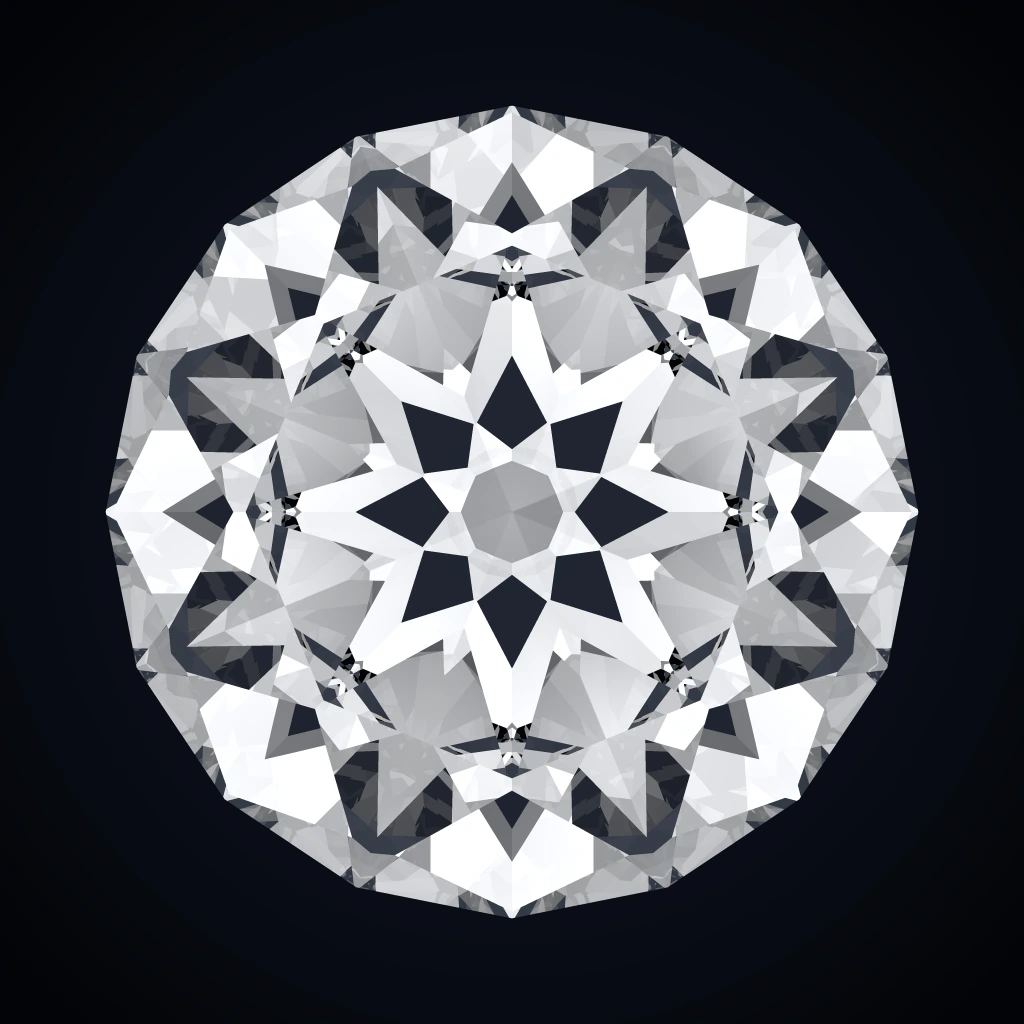

P1 and C2 shifted slightly across each full tier, all eight shafts pull back in unison from the table rim, detaching from their arrowheads while 3D brilliance loses almost nothing (99.4% retained).

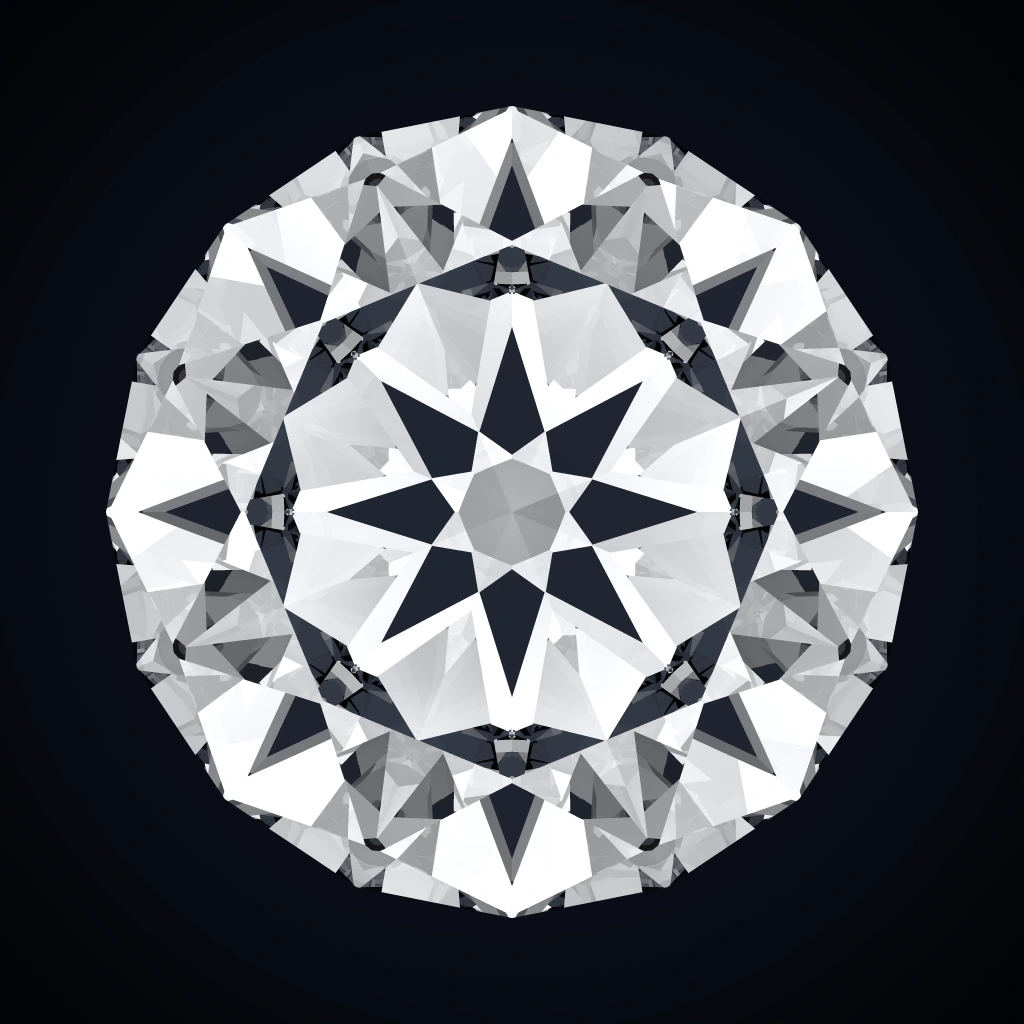

Notice why all eight arrows above shorten and detach in perfect eight-fold lockstep: under pure per-tier mast drift, every arrow around the crown experiences the exact same tier-to-tier mismatch between P1, P2, and C2 (whereas in a diamond factory, seeing just one lopsided arrow at four o'clock diagnoses an asymmetric mechanical culprit like dop-transfer tilt, index-wheel runout, or local cheater creep). Every dark arrow in a viewer scope is a precision two-bounce periscope, so drifting past ±0.15° breaks shaft-to-arrowhead registration. Yet because 41.0° and 39.8° sit more than fifteen degrees safely above diamond's 24.4° critical angle, and every tier enjoys wide angular separation, a broken arrow never opens a window. The photons simply trade one bright total-internal-reflection bounce for another, keeping naked-eye fire and scintillation virtually intact.
Three Bench Takeaways Before You Dop Up
- Read Cut Forgiveness alongside the ideal headline score: An Excellent plateau diagram (98%+ retention) routinely beats a slightly higher-scoring knife-edge once real mast flex and dop transfers enter the picture.
- Watch for sub-degree crowded tiers: Pavilion tiers stacked within half a degree to a degree of each other are sensitive to overcutting if an angle drifts; clean two-degree-plus tier spacing acts as built-in optical shock absorption.
- Separate scope symmetry from room-light brilliance: Hitting tenth-of-a-degree meetpoints is rewarding craft and essential for strict viewer-scope patterns, while picking a plateau geometry guarantees your stone will still light up across the room even when a stubborn facet fights back.
Every design page on OffTheDop displays its full 100-run Monte Carlo Cut Forgiveness score right beside its 3D optical metrics, and you can test any diagram of your own in ProFacet:
Cut on a 3D Optical Plateau Instead of a Knife-Edge
Every diagram in the OffTheDop catalog reports its 100-trial Cut Forgiveness (p10) grade alongside GPU BDPT studio renders, ASET diagnostics, and interactive 3D ray inspection in ProFacet.
